SOLENOID COILS
SPECIFICATIONS
Part :

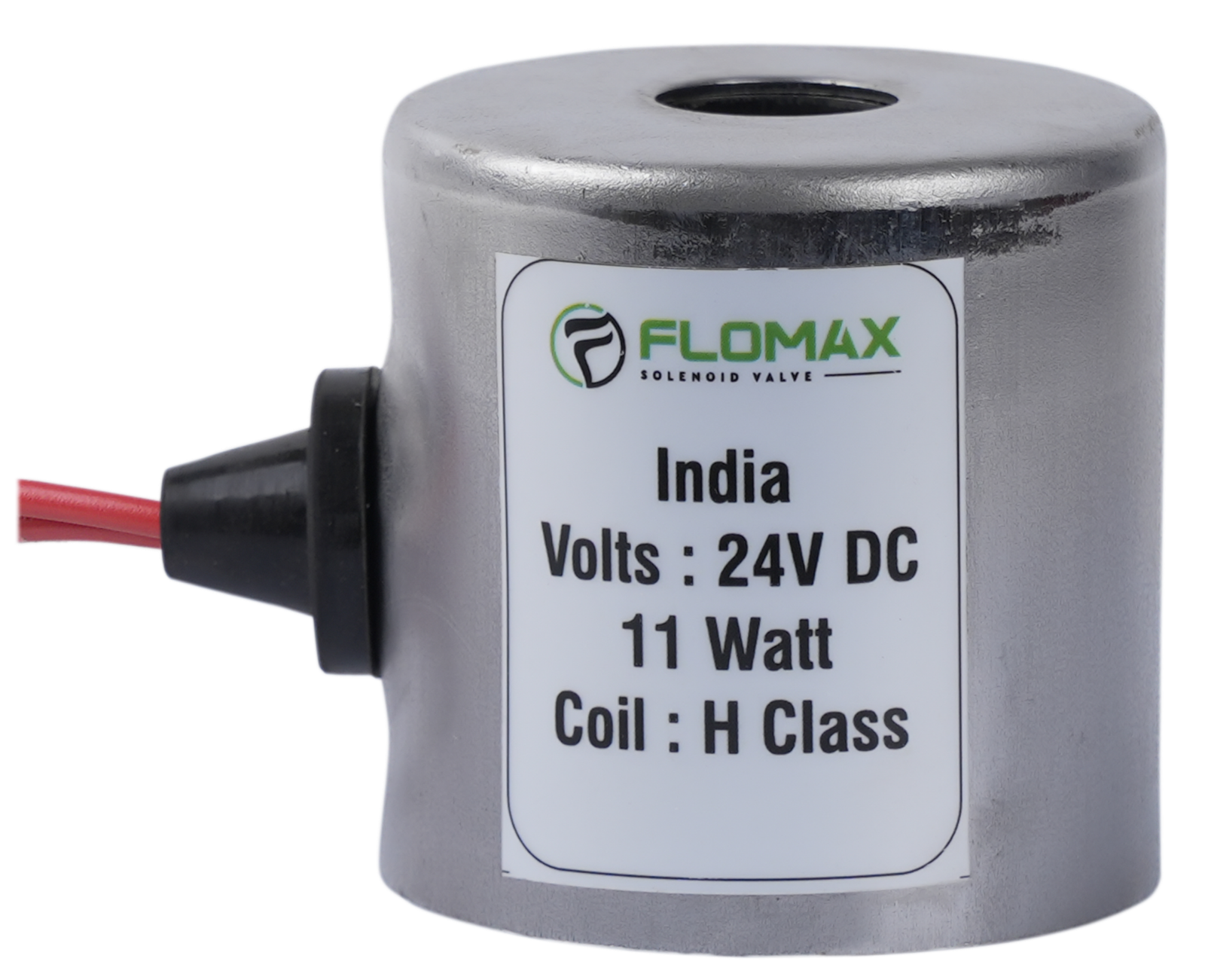

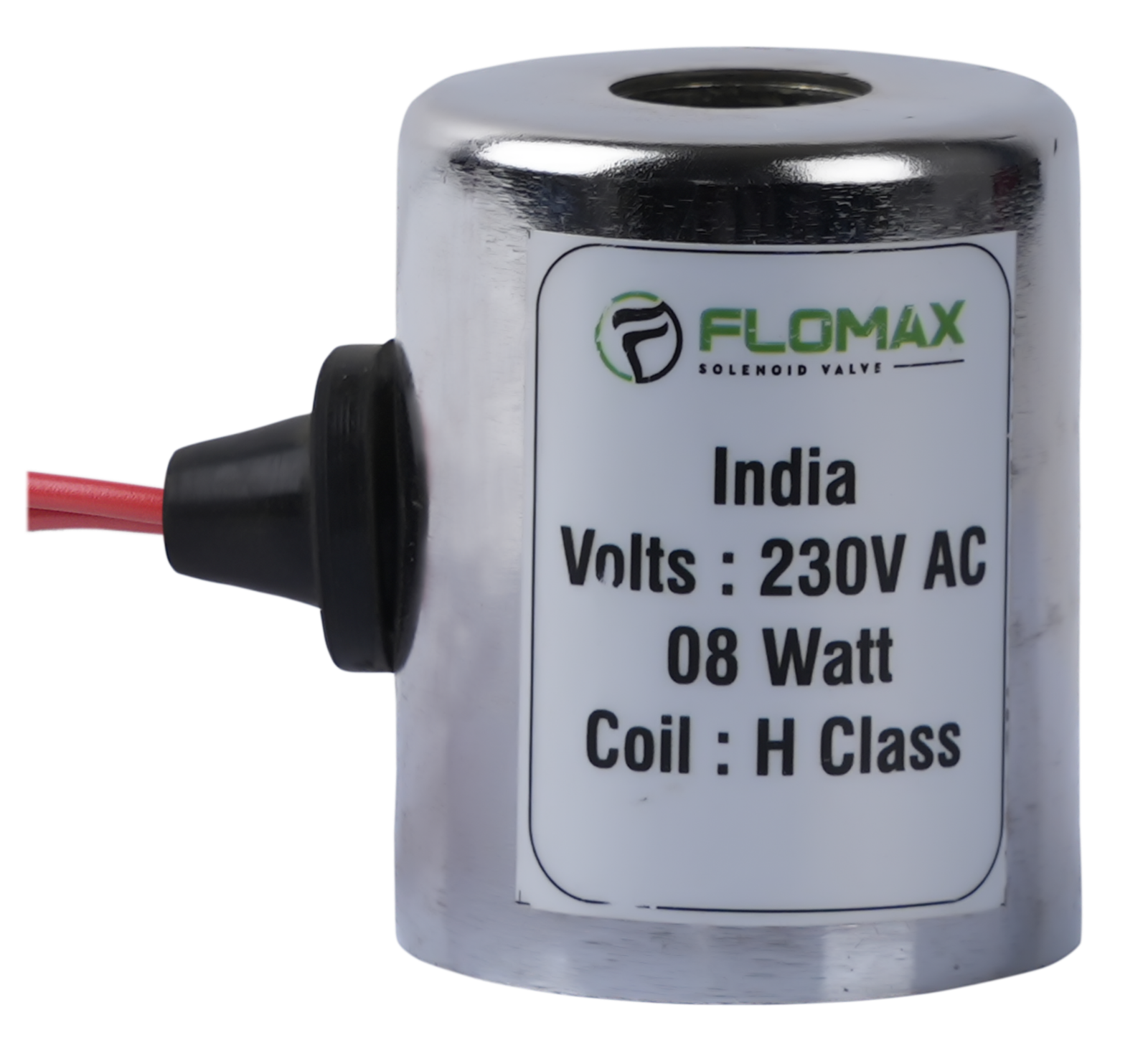

Epoxy moulded with LED DIN connector, Metallic round shape with lead wire,
Flame proof Aluminium box, Weather proof metallic round enclosure,
Water proof metallic round enclosure.
Coil Bore Diameter :
14mm, 17mm
Class :
H-Class, Water Proof, Weather Proof, Flame Proof
Voltage :
| 24AC | 110AC | 230AC | 12DC | 24DC |
|---|---|---|---|---|
| 5W | 8W | 6W / 8W / 9W | 10W / 12W | 11W / 17W |
Duty :
Continues Duty

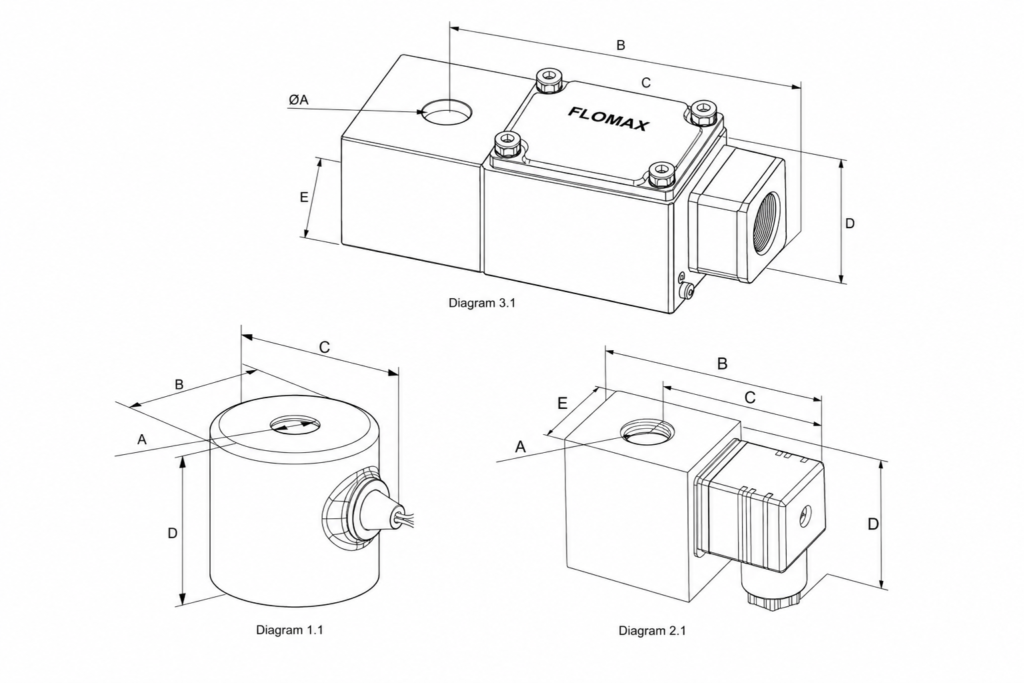

Dimension
| Type | Diagram NO. | A | B | C | D | E |
|---|---|---|---|---|---|---|
| Round Metallic Coil | 1.1 | 14.2 | 38 | 50 | 47 | – |
| Round Metallic Coil | 1.1 | 14.2 | 47 | 59 | 47 | – |
| Round Metallic Coil | 1.1 | 17.1 | 50 | 63 | 53 | – |
| Epoxy Moulded | 2.1 | 14.2 | 71 | 53 | 49 | 36 |
| Flame Proof | 3.1 | 14.2 | 116 | 93 | 50 | 42 |
