SEMI LIFT DIAPHRAGM OPERATED SOLENOID VALVE (Normally Close)

Way To Go For, Automation!

Port

Screwed Available BSP / NPT, Flanged Available 150 Class

Size

1/2" TO 2"

End Connection

Screwed / Flange

Body Material

SS ASTM A351 Grade CF8 / CF8M

Diaphragm

Nitrile (NBR)

-30°C to 90°C

Media Temp

-10°C to 70°C

Circumstance Temp

Air, Water, Gas, Mild Vacuum, Light Oil

Pressure

(1/2", 3/4" AND 1" 0 to 7 BAR)
(1-1/2" and 2" 0 to 5 BAR)

Main Features

Internal parts are in superior corrosion resistance steel. Suitable for food, pharma and chemical applications.

Operating Voltage

24AC	110AC	230AC	12DC	24DC
5W	8W	8W/9W	10W/12W	11W/17W

Coil Features

High reliability, unaffected by voltage surges. Easy coil replacement.

Coil Housing

Metallic round enclosure coil, moulded square coil

Other Specification

Available on Request (0 BAR to 2 BAR).

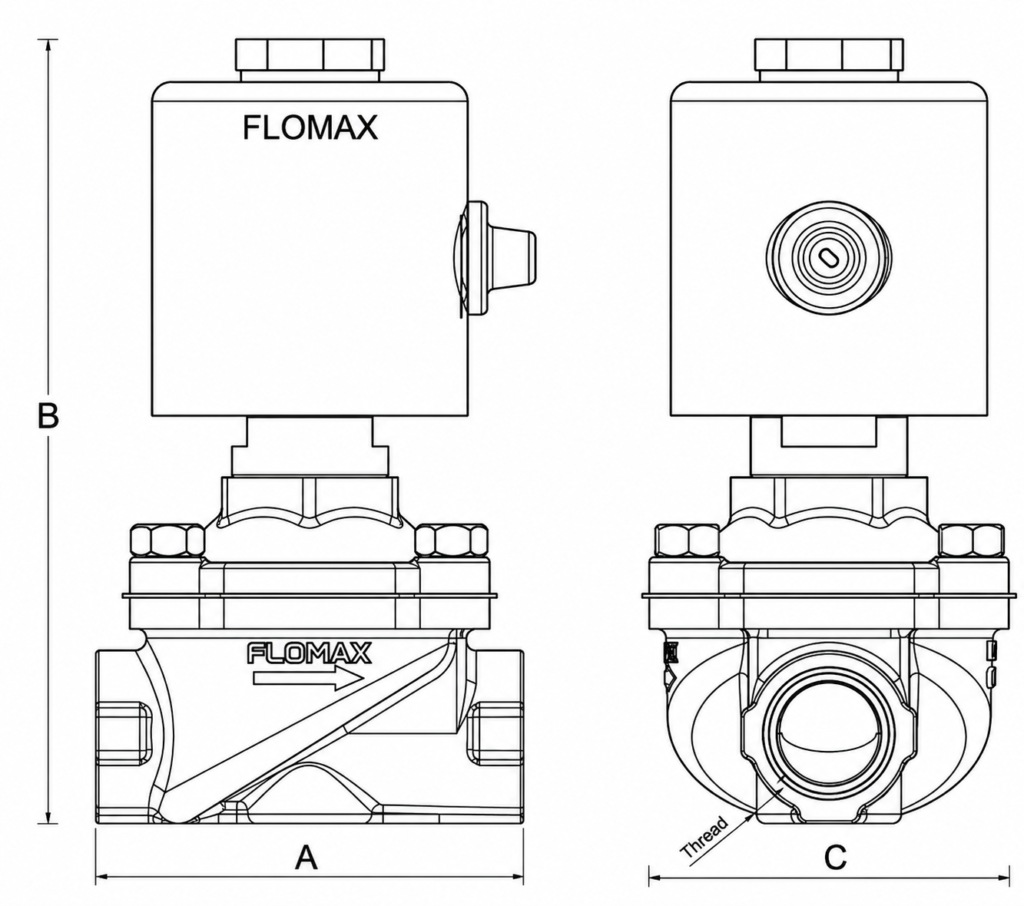

SIZE	A	B	C	THREAD
DN15	68	125	58	G 1/2
DN20	81	135	68	G 3/4
DN25	95	145	81	G 1
DN32	118	165	111	G 1 1/4
DN40	118	165	111	G 1 1/2
DN50	137	175	129	G 2
