2/2 WAY DIRECTACTING SOLENOID VALVE (Normally Close)
SPECIFICATIONS
Port :
Screwed Available BSP / NPT
Size :
1/8", 1/4", 3/8", 1/2"
End Connection :
Screwed
Body Material :
SS ASTM A351 Grade CF8 / CF8M, Forged Brass, Aluminium
Diaphragm :
| Nitrile (NBR) | EPDM | Viton (FKM) |
|---|---|---|
| -30°C to 90°C | -10°C to 140°C | -10°C to 180°C |
Media Temp :
-10°C to 70°C
Circumstance Temp :
-10°C to 70°C
Media :
Air, Chemical, Gas, Oil, Steam, Hot Water
Operating Voltage &
Power Consumption :
Power Consumption :
| 24AC | 110AC | 230AC | 12DC | 24DC |
|---|---|---|---|---|
| 5W | 8W | 6W | 10W / 12W | 11W / 17W |
Coil Features :
High Reliability Unaffected by Voltage Surges.
Easy coil changes coil lockable in 4X90 position or freely movable in between as require.
Easy coil changes coil lockable in 4X90 position or freely movable in between as require.
Coil Housing :
Metallic round enclosure Coil
Other Specification Data :
Available on Request (1 BAR to 20 BAR)

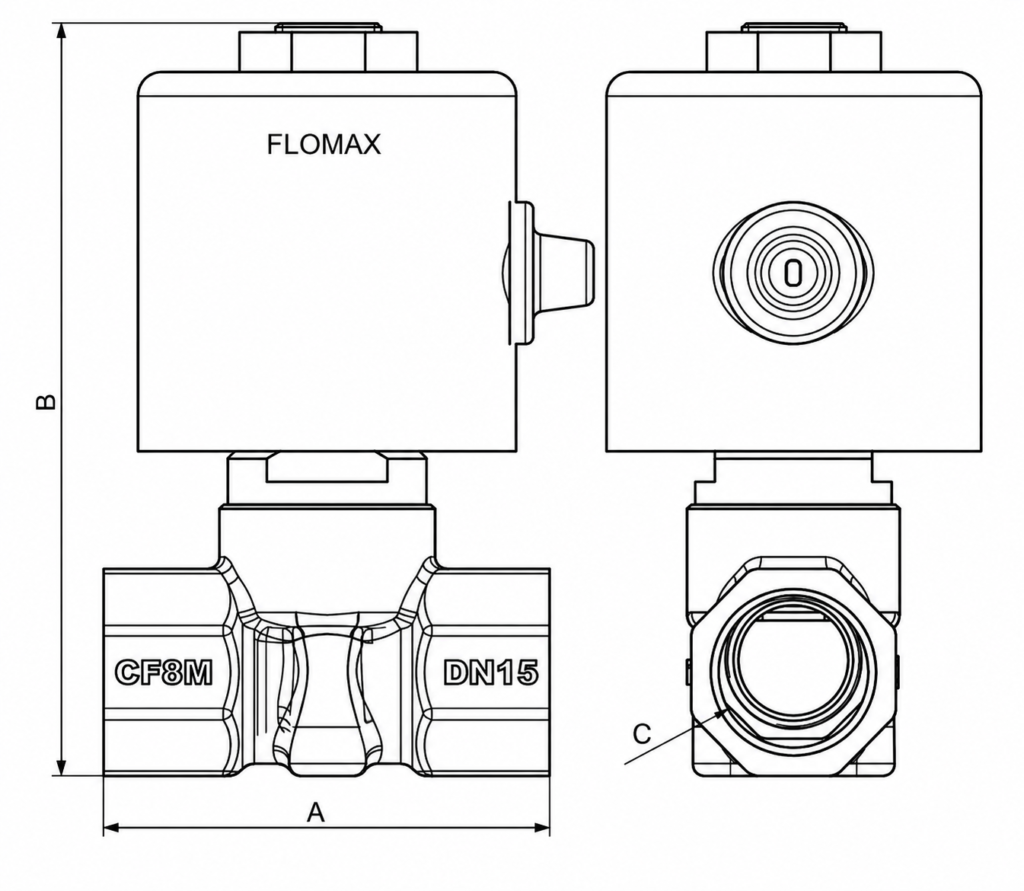

Dimension Brass
| SIZE | A | B | C |
|---|---|---|---|
| 1/4" | 92 | 40 | G – 1/4" |
| 3/8" | 98 | 56 | G – 3/8" |
| 1/2" | 98 | 56 | G – 1/2" |
Dimension Aluminium
| SIZE | A | B | C |
|---|---|---|---|
| 1/8" | 51 | 90 | G – 1/8" |
| 1/4" | 51 | 90 | G – 1/4" |
| 3/8" | 51 | 90 | G – 3/8" |
| 1/2" | 51 | 90 | G – 1/2" |
Dimension SS CF8
| SIZE | A | B | C |
|---|---|---|---|
| 1/4" | 50 | 90 | G – 1/4" |
| 3/8" | 50 | 90 | G – 3/8" |
| 1/2" | 56 | 94 | G – 1/2" |
